Signs your Stittsville garage door spring has failed
Springs rarely wear out slowly. Most fail in an instant, and you'll usually get one of these clues:
- A loud crack or bang from an empty garage, often early in the morning or overnight.
- A gap in the coil. With the door closed, look at the spring on the bar above the door. A break leaves a clear gap of a few centimetres between coils.
- The door rises a few centimetres and stops, or the opener reverses right away. Many openers read the extra weight as an obstruction.
- The door feels like it's bolted down when you pull the manual release and try lifting it.
- One side sits higher than the other, or a lift cable is hanging loose off its drum.
- On older extension-spring doors (springs along the horizontal tracks on each side), one spring looks stretched out or hangs loose. The safety cable inside it is the only thing holding it.
If you notice any of these, stop using the opener. With a spring gone, the opener is lifting the full weight of the door. That can strip its gear or bend the top panel, which turns a spring job into a bigger repair.
Why garage door springs fail in Stittsville
Builder springs reaching the end of their life. Much of Stittsville was built in waves. Crossing Bridge and the older streets off Stittsville Main Street filled in through the 1990s. Granite Ridge, Timbermere and Jackson Trails were completed through the 2000s. Fairwinds, Poole Creek and Potter's Key followed from the mid-2000s into the 2010s. Most builders install standard-cycle torsion springs, so homes from the 2000s are now reaching the age when original springs tend to break. In many 1990s homes, the springs may already be on their second set.
Ottawa winter cold. Most attached garages in Stittsville aren't heated. On a deep-cold January morning, the steel spring is as cold as the outdoor air, and cold steel is less forgiving. That's why we get a burst of spring calls during the first hard cold snap of each winter. A spring that's already near the end of its life tends to give out on the first very cold morning someone opens the door.
Garage-first households. Plenty of families in Stittsville drive to work down Hazeldean Road or Fernbank Road and come in through the garage, not the front door. Every trip in and out uses a cycle, with several trips a day for school runs, hockey at the CARDELREC Recreation Complex Goulbourn, or errands on Stittsville Main. That adds up much faster than most people expect.
Rust and salt. Winter slush and road salt melting off cars, plus summer humidity, cause surface rust on the coils. Rust pits create weak points, and that's usually where the break starts.
Heavier doors on newer homes. Many newer homes in Fernbank-area neighbourhoods like Blackstone and Westwood have insulated steel doors with windows, and some have double-wide doors. A heavier door needs a correctly sized spring. A spring that's even slightly undersized works harder on every cycle.
Spring parts we install: torsion, extension and high-cycle

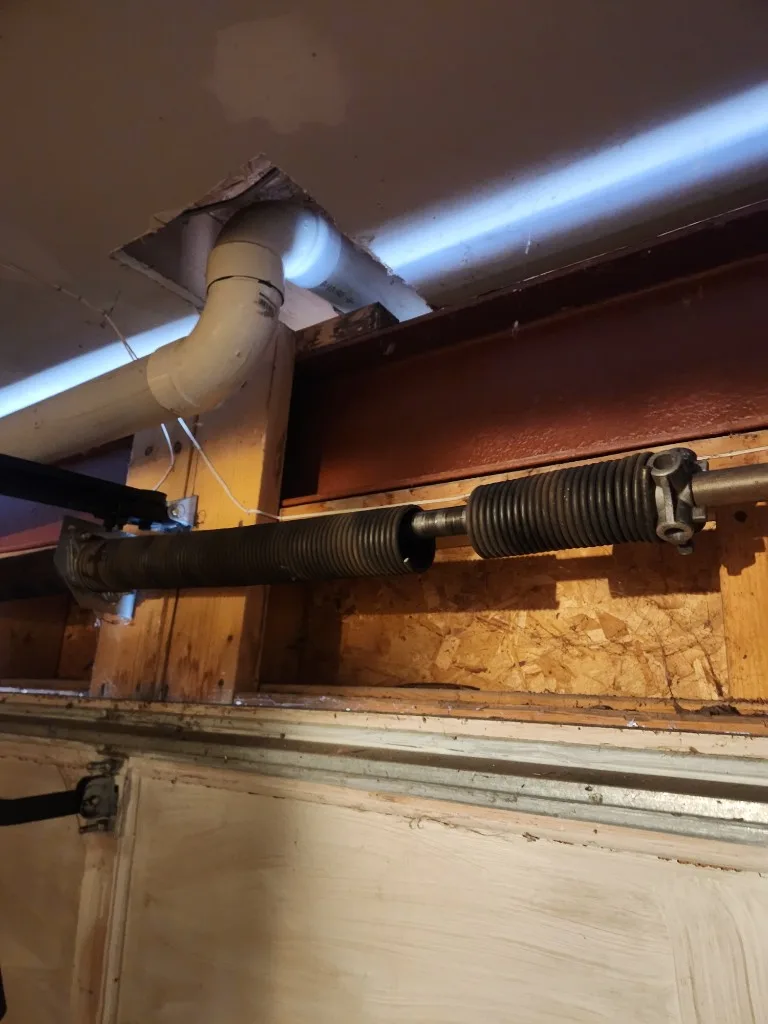

Most Stittsville homes built since the 1990s have torsion springs: one or two springs on a steel shaft right above the door. Some older homes in the original village, and some detached garages, still use extension springs that stretch along the side tracks. For a full comparison, see our guide to torsion vs extension springs in Ottawa.
| Spring type | Where you'll see it | What we recommend |
|---|---|---|
| Standard torsion | Most builder-installed doors in Stittsville | Replace as a pair, sized to the door's actual weight |
| High-cycle torsion | Upgrade option | Good if the garage is your main entrance. Built with a higher cycle rating so it lasts longer |
| Extension (with safety cables) | Older or detached garages | Replace as a pair. We always confirm containment cables are in place |
We match each spring by wire size, inside diameter and length to your door. We don't install whatever happens to be on the truck. If cables, bottom brackets, rollers or centre bearings are worn, we'll show you before suggesting anything. With the door already unloaded, that's the cheapest time to replace them.
What a Stittsville spring repair involves
- Inspect the whole system. We confirm which spring broke and check the other spring, cables, drums, bearings, rollers and tracks.
- Written quote first. You approve the price before we start any work.
- Clamp the door and release stored tension safely, using proper winding bars. Never screwdrivers.
- Fit new springs sized to your door. If your garage gets heavy use, we can upgrade you to high-cycle springs.
- Wind and balance. We set the tension so the door stays put when you let go halfway up.
- Test with the opener. We check travel limits, force settings and the auto-reverse safety sensors, then lubricate the springs, hinges and rollers.
Most jobs take 30–60 minutes once we're in your driveway.
Garage door spring replacement pricing in Stittsville
| Service | Price |
|---|---|
| Torsion or extension spring replacement | $250–$350 per spring installed (parts and labour) |
| Seniors & veterans | 5% off |
| Warranty | 3 years, parts and labour |
You get the exact price in writing before any work starts. We don't add a distance surcharge for Stittsville, whether you're on Abbott Street, near Iber Road or out past the Trans Canada Trail. We usually recommend replacing both springs together, because they've run the same number of cycles. If a cable came off when the spring broke, see our garage door spring repair in Ottawa page for how we handle those combined repairs.
Book same-day garage door spring repair in Stittsville
A broken spring can leave a car stuck in the garage on a school morning. We're open Monday–Saturday, 7 AM–6 PM, with 24/7 emergency service when a door can't wait. GDS is rated 5.0★ from 116 Google reviews. Call or text 343-777-8893, or book online.
