Signs a garage door cable is about to fail (or already has)
Each lift cable starts at a bottom bracket on a lower corner of the door, runs up beside the track, and winds onto a drum at the end of the spring shaft. Here's what tells you one is in trouble:
- The bottom rail sits crooked. One corner touches the floor while the other stays a few centimetres up. That's a cable that has stretched, slipped or let go.
- Loose wire near the drum. The cable has unwound and is sagging, or it's sitting in the wrong groove on the drum instead of wrapping neatly.
- Rust-brown, bristly strands close to the floor, where the cable hooks onto the bottom bracket.
- A bracket that's bubbling or bent. Orange scale, swollen metal, or a bracket pulling away from the bottom panel.
- A roller popped out of the track on one side, often after the door shuddered, jerked or banged on its way down.
- The spring just broke. When a torsion spring snaps, the sudden release can throw a cable off its drum, so we always check both together.
Don't try to close it with the opener or force it by hand. A door with one cable is held up on a single corner. It can twist in the tracks, kink the panels, or drop. And the cable is attached to wound spring tension, so loosening the bracket yourself is dangerous.
Why cables fail in Stittsville garages
Salt water parked on the garage floor. Most Stittsville driveways empty straight onto Hazeldean Road, Fernbank Road or Stittsville Main Street, all salted heavily all winter. What drips off the car pools along the door seal, and the bottom brackets on each corner sit closest to that brine. Galvanizing wears off, the bracket scales, and the cable loop wrapped around it corrodes from the inside out.
Damp, unheated garages. Spring melt, autumn rain and humid summer air put moisture into an unheated garage, and it condenses on cold steel. Cables can rust inside the braid, where you can't see it, long before strands start sticking out.
Aging builder hardware. Older streets around Crossing Bridge and the original village, and 2000s neighbourhoods like Granite Ridge, Timbermere and Jackson Trails, often still run on their factory cables and brackets. The same goes for newer doors in Fairwinds, Poole Creek and Potter's Key after a few hard winters. Lower-grade original hardware is usually the first thing to rust.
Spring failure knocks cables loose. When a spring breaks, the cables can go slack in an instant and slip off their drums. If someone then runs the opener, the door can come down unevenly and pull a roller out of its track. A lot of our "cable" calls actually start with a spring.
Bumps and busy doors. In a household that's in and out of the garage for school runs, practices at the CARDELREC Recreation Complex Goulbourn, or weekend rides out on the Trans Canada Trail, a nudge from a bumper or bike can bend a track or bottom bracket. Once something is bent, the cable starts rubbing and wears fast.
Before and after: a Stittsville cable and bracket job

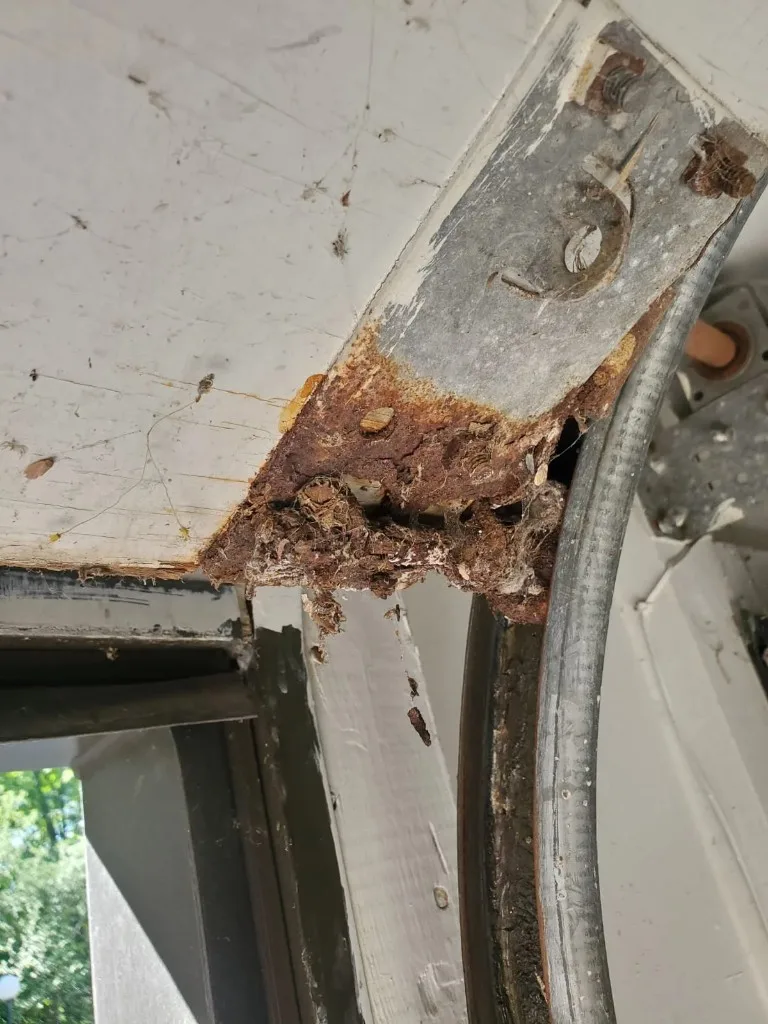

The "before" photo at the top of this page shows a typical Stittsville failure. The bottom corner of the door had rotted out, the bottom bracket was rusted, and the cable on the drum side was corroded. Fixing only the cable wouldn't have lasted, because a new cable on a rotten bracket starts to wear right away.

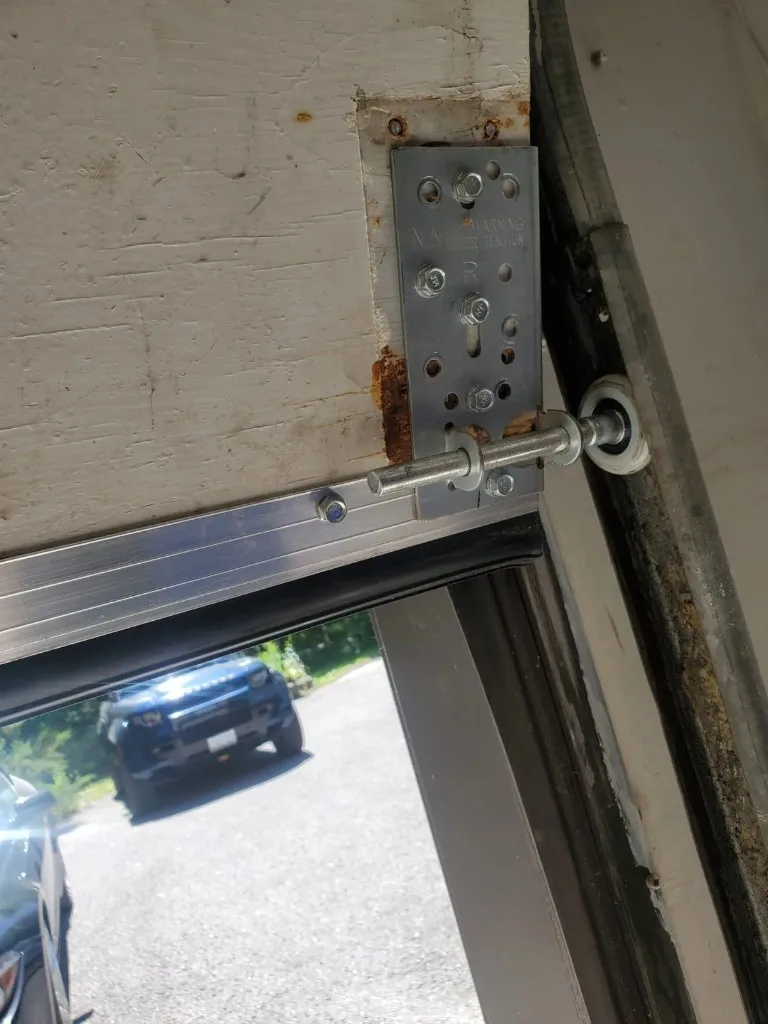

So we treated the bottom corner as one repair. We took out the corroded bracket and put in a new bottom bracket, roller and retainer, then ran a new cable up to the drum. You can see the result in the "after" photo in the next section. It's the same way we handle any door where salt has worked into the hardware at floor level.
What a Stittsville cable repair involves
- Secure the door first. We clamp it in the tracks so it can't shift while we work.
- Check the whole lift system. That means both cables, both drums, bottom brackets, springs, rollers, hinges and track alignment. A cable that failed often has a cause somewhere else.
- Price in writing. You approve the quote before any work starts.
- Unload the springs safely with proper winding bars, so nothing is under tension when the cables and brackets come off.
- Replace the cables as a pair, plus new bottom brackets, rollers and retainers wherever the old ones are corroded or bent. If a drum is cracked or the grooves are worn, we replace it too, because worn grooves let a cable slip.
- Rewind the cables evenly on both drums so the bottom rail sits level, then re-tension the springs.
- Balance and test. Lifted by hand to halfway, the door should stay put. Then we test the opener's force settings and safety reversal, and lubricate rollers and hinges.
Most cable and bracket repairs take 45–75 minutes on site.
Garage door cable repair pricing in Stittsville
| Service | Price |
|---|---|
| Cable replacement, both sides (bottom brackets included when needed) | $170–$220 parts and labour |
| Seniors & veterans | 5% off |
| Warranty | 3 years, parts and labour |
There's no extra charge for driving out to Stittsville, whether you're near Abbott Street, off Iber Road, or in the new streets near Fernbank. If a broken spring caused the cable problem, we'll quote both repairs together on the same visit. See garage door spring repair in Stittsville for spring pricing. Not sure your cables need replacing yet? Our guide to frayed garage door cables covers what to look for.
Book same-day garage door cable repair in Stittsville
A door hanging on one cable won't fix itself, and it isn't safe to keep using. We're open Monday–Saturday, 7 AM–6 PM, with 24/7 emergency service for nights, Sundays and doors stuck open in a storm. GDS is rated 5.0★ from 117 Google reviews. Call or text 343-777-8893, or book online.
